Product Introduction

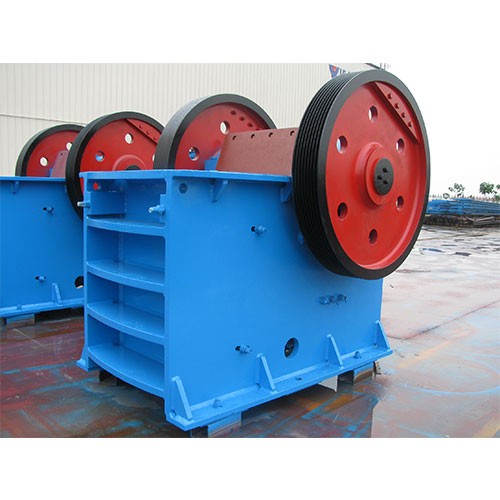

Stone Crusher PE-870x1060
JingleMachines can produce many kinds of crushing machines, including jaw crusher, impact crusher, vertical shaft impact crusher, hydraulic cone crusher, Simmons composite spring cone crusher, mobile crusher plant etc. These machines can process almost all kinds of rocks and minerals, such as, basalt, pebble, iron ore, limestone, granite, quartz stone, shale, gravel, river stone, bluestone, construction waste, building aggregates, etc. The crushing machines can be used in sand aggregate, quarry, agriculture, electricity, mining, metallurgy, construction, chemistry, etc.
Today let us introduce the jaw crusher in details. As we know, Jaw crusher is widely used in the world market nowdays and it is a kind of crushing machines with high efficiency, energy saving, simple structure, and easy maintenance. They are mainly used for all kinds of ores and medium-size bulk materials, with its strength less than 320 Mpa, which has two types, coarse and fine crushing. The feeding material size by primary crushing machine is 125mm to 750mm. The jaw crusher(Jaw broken) is widely used in mining, metallurgy, building materials, road, railway, water and chemical industries.
The main technical parameters of Jaw Crusher from JingleMachines as below,
Model | Size of Feed Opening (mm) | Max.Feed size (mm) | Discharge Range Opening (mm) | Capacity (t/h) | Motor Power (kw) | Weight(t) | Dimension(mm) |
PE-150x250 | 150x250 | 125 | 10-40 | 1-3 | 5.5 | 0.6 | 720x660x850 |
PE-200x300 | 200x300 | 180 | 15-50 | 2-6 | 7.5 | 1 | 910x750x990 |
PE-200x350 | 200x350 | 180 | 18-70 | 3-10 | 11 | 1.3 | 1000x870x990 |
PE-250x400 | 250x400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300x1090x1270 |
PE-400x600 | 400x600 | 340 | 40-100 | 16-60 | 30 | 6.1 | 1730x1730x1630 |
PE-500x750 | 500x750 | 425 | 50-100 | 40-110 | 55 | 10.5 | 1980x2080x1870 |
PE-600x900 | 600x900 | 500 | 65-180 | 55-148 | 55-75 | 14.8 | 2190x2206x2300 |
PE-750x1060 | 750x1060 | 630 | 80-140 | 115-330 | 110 | 28 | 2660x2430x2800 |
PE-870x1060 | 870x1060 | 650 | 200-260 | 290-336 | 110 | 29 | 2810x2430x2800 |
PE-900x1060 | 900x1060 | 685 | 230-290 | 160-400 | 110 | 31 | 2870x2420x2940 |
PE-900x1200 | 900x1200 | 750 | 95-165 | 220-450 | 110 | 45.5 | 3380x2870x3330 |
PE-1000x1200 | 1000x1200 | 850 | 195-265 | 315-500 | 110 | 47 | 3480x3876x3330 |
PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 400-800 | 200 | 90 | 4200x3300x3500 |
PE-1500x1800 | 1500x1800 | 1200 | 220-350 | 500-1000 | 280 | 139 | 5160x3660x4248 |
PEX-150x750 | 150x750 | 120 | 18-48 | 8-25 | 15 | 2.6 | 1200x1530x1060 |
PEX-250x750 | 250x750 | 210 | 25-60 | 13-35 | 30 | 5.5 | 1380x1750x1540 |
PEX-250x1000 | 250x1000 | 210 | 25-60 | 16-52 | 37 | 6.5 | 1560x1950x1390 |
PEX-250x1200 | 250x1200 | 210 | 25-60 | 20-61 | 45 | 7.8 | 2140x1660x1500 |
PEX-300x1300 | 300x1300 | 250 | 20-90 | 16-105 | 75 | 11.5 | 2720x1950x1600 |
